Ideal applications
1.Varying process flow rates and vapor concentrations.
2.High emission destruction requirements
3.Low maintenance demands.
4.Mixing operations, tank vents, loading stations and more.
2021 官网升级中！现在您访问官网的浏览器设备分辨率宽度低于1280px请使用高分辨率宽度访问。

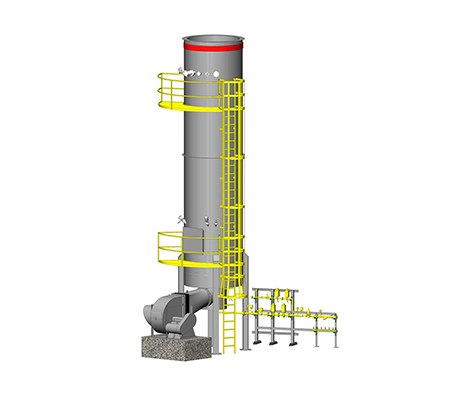

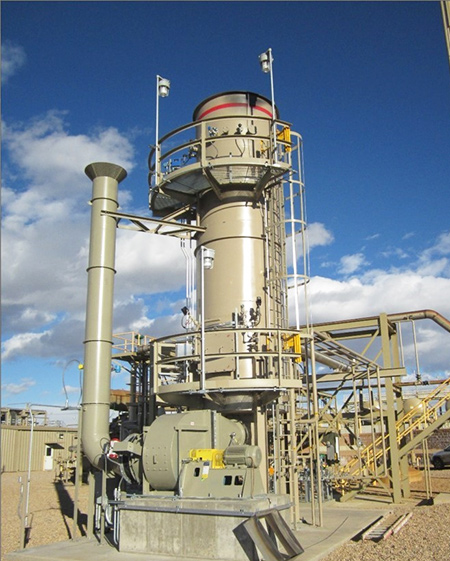

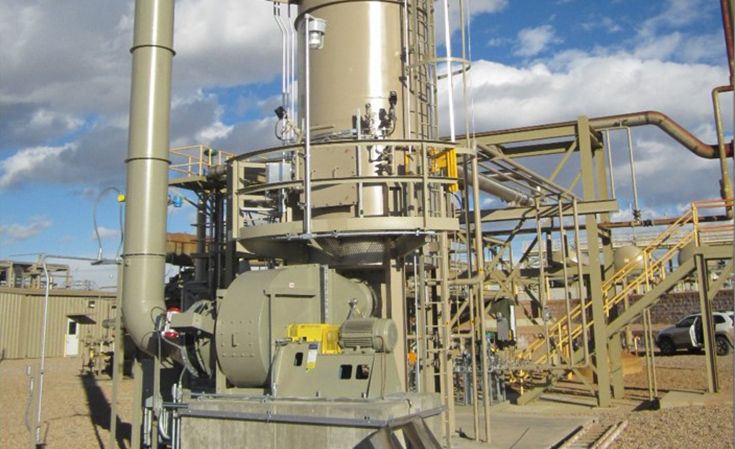

Anguil’s Vapor Combustion Unit combines the simplicity of an enclosed flare with the destruction performance of a thermal oxidizer. Whether designed for intermittent use or installed on a continuous emission stream, the Anguil VCU technology has many advantages over other enclosed combustion systems. It is a robust device capable of handling varying emission flow rates and concentration changes.
VCU destroys the VOC compounds in the combustion chamber through an exothermic reaction. The oxygen-poor and high concentrated process emission is introduced into the burner as fuel and will be combusted after it is fully mixed with the combustion air. The VOCs pollutant will convert into CO2 and water and to be released into the atmosphere.
1.Varying process flow rates and vapor concentrations.
2.High emission destruction requirements
3.Low maintenance demands.
4.Mixing operations, tank vents, loading stations and more.
1.Knockout pots for upstream liquid separation.
2.Low, medium or high temperature designs.
3.Forced draft configuration.
4.Corrosion resistant metallurgies.
